Part #	882
Description	T2 1/4 12V 4W HALOGEN
Bulb Shape	T2 1/4	Filament	C-6	Base Style	Printed Circuit
Glass Diameter	.28in/ 7.1mm	Lumens		Base Material	Plastic
Design Wattage	4.48	MSCP †	3.8	RoHS Compliant	Yes
Design Voltage	12	MOL ‡	1.18in/ 30.0mm	Rated Avg Life Hrs	2000
Design Amps	0.35	LCL ††	.37in/ 9.4mm	Headlight Socket

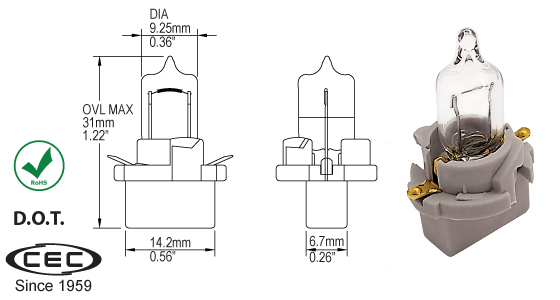

E-Mark	No	Drawing Details	882.pdf	Announcement Sheet

Click below to see USMCA & Packaging information

† MSCP (Mean Spherical Candlepower):

Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

‡ MOL (Maximum Overall Length):

The overall length of a lamp, from the top of the shell to the bottom of the base.

†† LCL (Light Center Lenght):

The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
