Part #	9005L(plus)
Description	T4 12V 65W P20d LOW/HIGH BEAM HALOGEN
Bulb Shape	T4	Filament	C-8	Base Style	Right Angle Prefocus P20d
Glass Diameter	0.49 in/ 12.45 mm	Lumens	1700	Base Material	Plastic
Design Wattage	65	MSCP †	135	RoHS Compliant	Yes
Design Voltage	12.8	MOL ‡	3.09 in/ 78.49 mm	Rated Avg Life Hrs	800
Design Amps	5.07	LCL ††	1.24 in/ 31.5 mm	Headlight Socket	85906

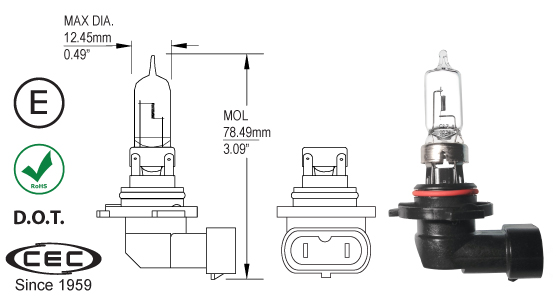

E-Mark	Yes	Drawing Details	9005L+.pdf	Announcement Sheet	9005L+.pdf

Click below to see USMCA & Packaging information

† MSCP (Mean Spherical Candlepower):

Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

‡ MOL (Maximum Overall Length):

The overall length of a lamp, from the top of the shell to the bottom of the base.

†† LCL (Light Center Lenght):

The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
