| Part # | H1 55W | |||||
|---|---|---|---|---|---|---|
| Description | T2 1/2 12V 55W P14.5s HALOGEN | |||||
| Bulb Shape | T2 1/2 | Filament | C-8 | Base Style | P14.5s | |
| Glass Diameter | .335in/ 8.5mm | Lumens | 1410 | Base Material | Metal | |
| Design Wattage | 65 | MSCP † | 112 | RoHS Compliant | Yes | |
| Design Voltage | 12 | MOL ‡ | 2.46in/ 62.50mm | Rated Avg Life Hrs | 200 | |
| Design Amps | 4.58 | LCL †† | 1.08in/ 27.5mm | Headlight Socket | ||

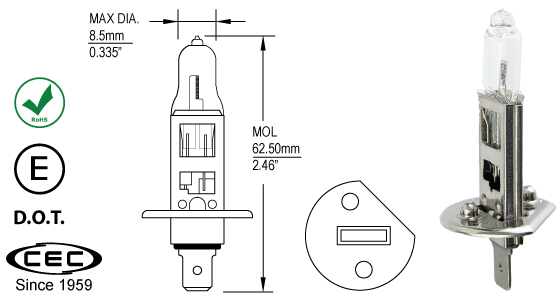

| E-Mark | Yes | Drawing Details |
 H1 55W.pdf
|
Announcement Sheet | ||
Click below to see USMCA & Packaging information
- † MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- ‡ MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
