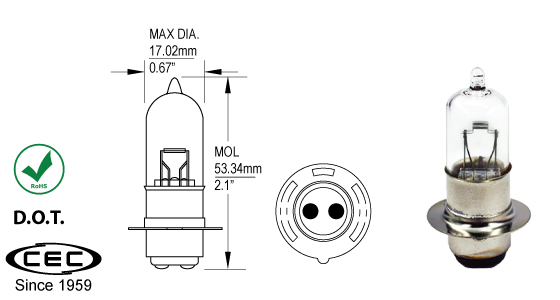

Part #	HM202
Description	T6 12V 36.5/35W P15-25-1 HALOGEN
Bulb Shape	T6	Filament	CC-6/CC-6	Base Style	P15-25-1
Glass Diameter	.67in/ 17.02mm	Lumens	840 High/ 805 Low	Base Material	Metal
Design Wattage	40 High/ 40 Low	MSCP †	67 High/ 64 Low	RoHS Compliant	Yes
Design Voltage	13	MOL ‡	2.10 in/ 53.34 mm	Rated Avg Life Hrs	130 High/ 130 Low
Design Amps	3.0 High/ 2.92 Low	LCL ††	0.78 in/ 19.81 mm	Headlight Socket
E-Mark	No	Drawing Details	HM202.pdf	Announcement Sheet	HM202.pdf

Click below to see USMCA & Packaging information

† MSCP (Mean Spherical Candlepower):

Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

‡ MOL (Maximum Overall Length):

The overall length of a lamp, from the top of the shell to the bottom of the base.

†† LCL (Light Center Lenght):

The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
