| Part # | B2A | |||||
|---|---|---|---|---|---|---|
| Description | Neon Lamp (NE-51H),resistor not included | |||||
| Bulb Shape | T-3 1/4 p | Base Style | Miniature Bayonet (BA9s) | Circuit Volts | 105/125 | |
| Glass Diameter | 0.40 in / 10 | MOL† | 1.19 in / 30.23 mm | Watts | 0.08 | |
| Breakdown Volts Max (AC) | 95 | Breakdown Volts Max (DC) | 135 | Series Resistance (KOhms) | 47 | |

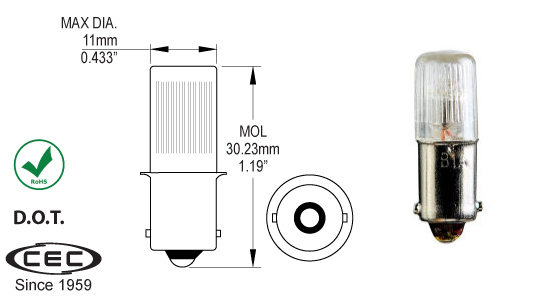

| Life Hours | 15000 | Drawing |
 B2A.pdf
|
|||
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
