SEALED BEAM 4415A

Go Back
Part # 4415A
Description FOG AUTOMOTIVE, 12.8V 35W, PAR-36 2-SCREW TERMINAL AMBER COATED
Bulb ShapePar-36FilamentC-6Base Style2-Screw Terminals

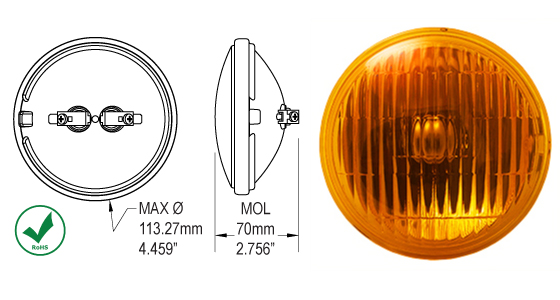

Glass Diameter 4.459 in / 113.27mm Lumens 87,990 Base Material Copper
Design Wattage 35 MSCP 7,000 RoHS Compliant Yes
Design Voltage 12.8 MOL 2.756 in / 70 mm Rated Avg Life Hrs 100
Design Amps 2.73 LCL †† Headlight Socket
E-Mark No Drawing Details Announcement Sheet
Click below to see USMCA & Packaging information
MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
