| Part # | H6024 | |||||
|---|---|---|---|---|---|---|
| Description | AUTO, HIGH/LOW BEAM, TYPE 2D1, 12.8V 60/35W, PAR-56, 3-CONTACT-LUG | |||||
| Bulb Shape | Par-56 | Filament | C-6 / C-6 | Base Style | 3 Contact Lugs | |

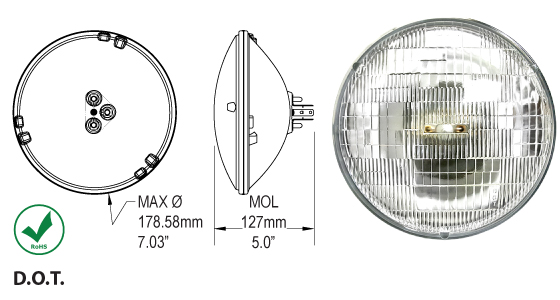

| Glass Diameter | 7.03 in / 178.58 mm | Lumens | 439,950 / 339,390 | Base Material | Copper | |
| Design Wattage | 60 / 35 | MSCP † | 35,000 / 27,000 | RoHS Compliant | Yes | |
| Design Voltage | 12.8 / 12.8 | MOL ‡ | 5.0 in / 127 mm | Rated Avg Life Hrs | 150 / 450 | |
| Design Amps | 4.69 / 2.73 | LCL †† | Headlight Socket | |||
| E-Mark | No | Drawing Details |
 H6024.pdf
|
Announcement Sheet |
H6024.pdf
|
|
Click below to see USMCA & Packaging information
- † MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- ‡ MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
